Compression Load Cell
Compression Load Cell Specification
- Capacity
- 7.5 Ton- 300 Ton Ton
- Product Type
- Compression Load Cell
- Material
- Stainless Steel
- Color
- Silver
- Application
- Silo & Tank Scale
- Usage
- Silo & Tank Scale
- Output
- Analog Sensor
- Type
- Compression Load Cell
Compression Load Cell Trade Information
- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 100 Pieces Per Week
- Delivery Time
- 7 Days
About Compression Load Cell
This Compression Load Cell is designed for use in Silo & Tank Scale applications, with a capacity ranging from 7.5 Ton to 300 Ton. Made of durable stainless steel in a sleek silver color, this type of load cell provides accurate analog sensor output for precise measurement in industrial settings.
| Brand | Flintec |
| Model | RC3 |
| Capacity | 7.5 Ton- 300 Ton |
| Material | Stainless Steel |
| Ingress Protection | IP68 |
| Application | Silo & Tank Scale |
| Features | Hermetically Sealed |
| Load Cell Certifications | OIML, ATEX, NTEP |
| Output Sensitivity(FS) | 2.0 +/-0.1 mV/V |
| Combined Error | <= +/- 0.0200 |
| Creep Error (30 minutes) | <= +/- 0.0166 |
| Accuracy Class | OIML R60 C3 |
| Temperature Effect on Zero | <= +/- 0.0093 |
| Temperature Effect on Output | <= +/- 0.0100 |
| Zero balance | +/- 5% FS |
| Maximum Safe Overload | 150% FS |
| Ultimate Safe Overload | 300% FS |
| Recommended Excitation Voltage | 5 to 15V DC |
| Maximum Excitation Voltage | 15V DC |
| Input Resistance | 1150 +/- 50 Ohm |
| Output Resistance | 1000 +/- 2 Ohm |
| Insulation resistance at 50V DC | >= 5000 M Ohm |
| Compensated Temperature Range | -10 to +40 Deg C |
| Operating Temperature Range | -35 to +65 Deg C |
| Load Cell Intervals (nLC)/Divisions | 3000 |
FAQs of Compression Load Cell:
Q: What is the maximum capacity of this Compression Load Cell?
A: The maximum capacity of this load cell is 300 Ton.Q: What material is this load cell made of?
A: This load cell is made of stainless steel.Q: What is the output type of this load cell?
A: The output type of this load cell is analog sensor.Q: What is the application of this Compression Load Cell?
A: This load cell is suitable for Silo & Tank Scale applications.Q: What color is this Compression Load Cell?
A: This load cell is silver in color.- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 100 Pieces Per Week
- Delivery Time
- 7 Days
Get Latest PriceTell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Load Cell Category

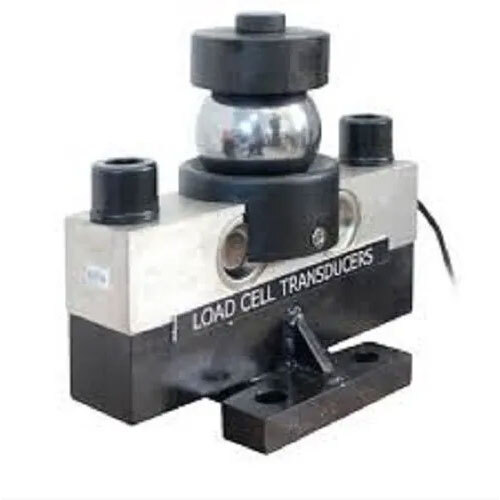

Digital Load Cell
Minimum Order Quantity : 1 Piece
Material : Alloy Steel
Product Type : Digital Load Cell
Output : Analog Sensor
Application : Tensile Testing Machine
Color : Silver/Black

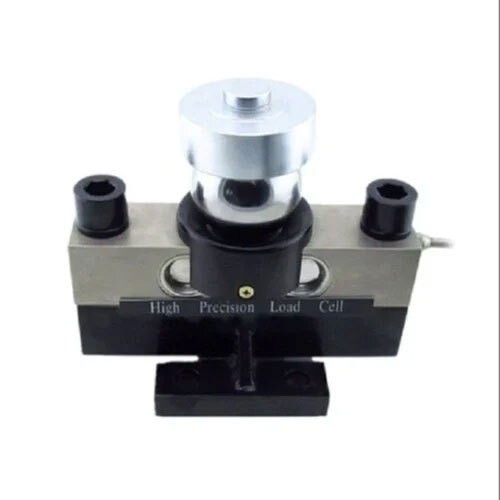

Analog Load Cell 30 Ton
Minimum Order Quantity : 1 Piece
Material : Steel
Product Type : Analog Load Cell 30 Ton
Output : Analog Sensor
Application : Weighbridge
Color : Silver/Black
S Load Cell
Minimum Order Quantity : 1 Piece
Material : Alloy Steel
Product Type : S Load Cell
Output : Analog Sensor
Application : Tensile Testing Machine
Color : Silver

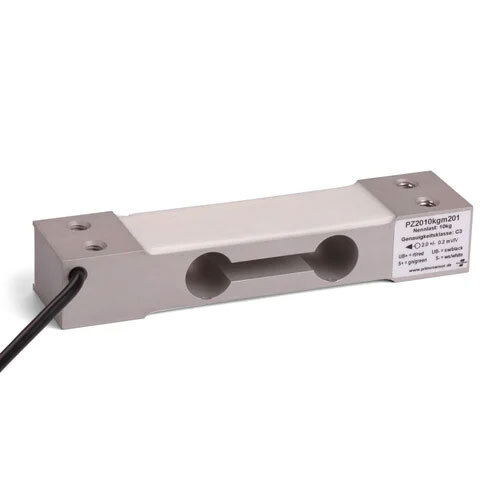

Single Point Load Cell
