Single Point Load Cell

Get a Price/Quote

Product Details:

Material Stainless Steel
Product Type Single Point Load Cell
Usage Platform Scale
Application Platform Scale
Capacity 4-100 Kg Kg
Color Silver
Output Analog Sensor
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Single Point Load Cell Price And Quantity

Minimum Order Quantity 1 Piece

Single Point Load Cell Product Specifications

Usage Platform Scale
Capacity 4-100 Kg Kg
Application Platform Scale
Color Silver
Material Stainless Steel
Product Type Single Point Load Cell
Output Analog Sensor
Type Single Point Load Cell

Single Point Load Cell Trade Information

Supply Ability 100 Piece Per Week
Delivery Time 7 Days

Product Description

The Single Point Load Cell is designed for platform scales with a capacity ranging from 4 Kg to 100 Kg. Made of durable stainless steel, this silver-colored load cell is ideal for accurately measuring weight on platform scales. It features an analog sensor output for reliable and consistent readings.

Brand	Sensortronics
Model	600048
Capacity	4-100 Kg
Material	Stainless Steel
Ingress Protection	IP67
Application	Platform Scale
Features	High Accuracy & Precision
Load Cell Certifications	OIML, ATEX, NTEP
Output Sensitivity(FS)	2.0 +/- 0.2 mV/V
Combined Error	+/-0.03% FS
Creep Error (30 minutes)	+/-0.03% FS
Accuracy Class	OIML R60 C3
Temperature Effect on Zero	+/-0.0015% FS/DegC
Temperature Effect on Output	+/-0.0008% FS/DegC
Zero balance	+/- 1% FS
Maximum Safe Overload	150% FS
Ultimate Safe Overload	300% FS
Recommended Excitation Voltage	10 to 12V DC
Maximum Excitation Voltage	15V DC
Input Resistance	380 +/- 450 Ohm
Output Resistance	349 +/- 355 Ohm
Insulation resistance at 50V DC	>= 1000 M Ohm
Compensated Temperature Range	-10 to +40 Deg C
Operating Temperatue Range	-35 to +65 Deg C
Load Cell Intervals (nLC)/Divisions	3000

FAQs of Single Point Load Cell:

Q: What is the capacity range of this Single Point Load Cell?

A: The capacity of this load cell ranges from 4 Kg to 100 Kg.

Q: What is the application of this load cell?

A: This load cell is designed for use in platform scales.

Q: What material is used to make this load cell?

A: This load cell is made of stainless steel for durability.

Q: What type of load cell is it?

A: This is a Single Point Load Cell.

Q: What is the output of this load cell?

A: The output of this load cell is an analog sensor.

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Load Cell' category

Digital Load Cell Minimum Order Quantity : 1 Usage : Industrial Color : Silver/Black Material : Alloy Steel Output : Analog Sensor Product Type : Digital Load Cell Application : Tensile Testing Machine Type : Digital Load Cell Operating Temperature : 30 to +70 Deg C Celsius (oC)

Send Inquiry

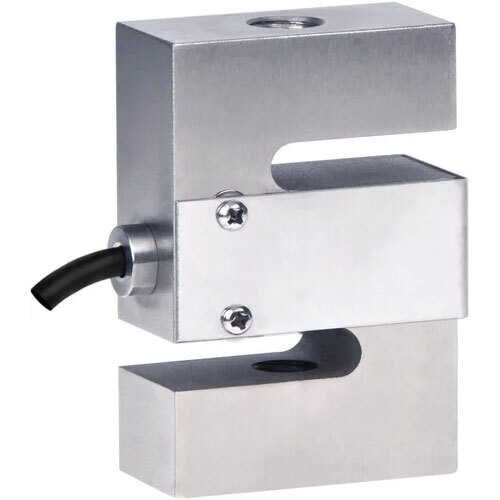

S Load Cell Minimum Order Quantity : 1 Usage : Industrial Color : Silver Material : Alloy Steel Output : Analog Sensor Product Type : S Load Cell Application : Tensile Testing Machine Type : S Load Cell Capacity : 50 Kg 6 Ton Ton

Send Inquiry

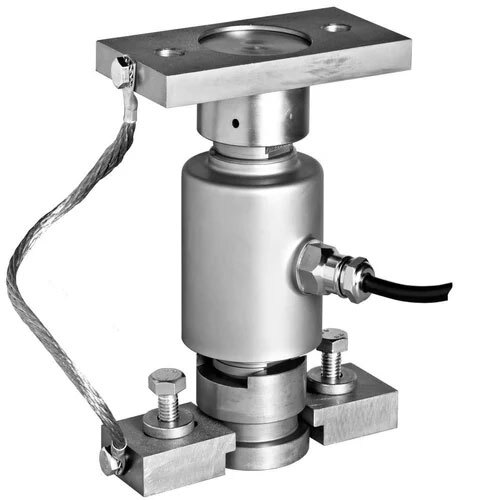

Compression Load Cell Minimum Order Quantity : 1 Usage : Silo & Tank Scale Color : Silver Material : Stainless Steel Output : Analog Sensor Product Type : Compression Load Cell Application : Silo & Tank Scale Type : Compression Load Cell Capacity : 7.5 Ton 300 Ton Ton

Send Inquiry

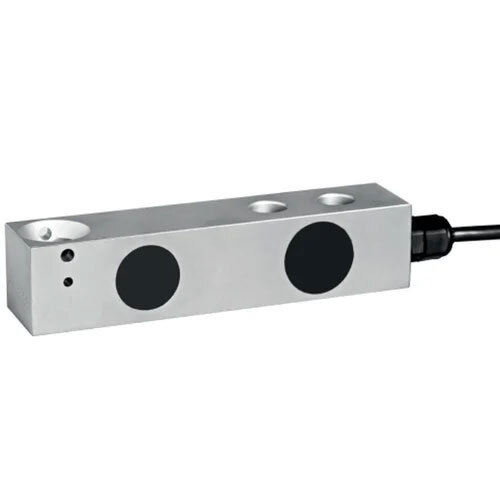

Single Ended Shear Beam Load Cell Minimum Order Quantity : 1 Usage : Industrial Color : Silver Material : Stainless Steel Output : Analog Sensor Product Type : Single Ended Shear Beam Load Cell Type : Single Ended Shear Beam Load Cell Operating Temperature : 35 to +65 Deg C Celsius (oC)
